    Gravity Expandable Flexible Steel Roller Conveyor

    Ask Lasest Price
    Brand Name : YiFan
    Model Number : FGR
    Certification : Flexible Conveyors
    Price : optional
    Payment Terms : T/T,L/C
    Supply Ability : 100 units/month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

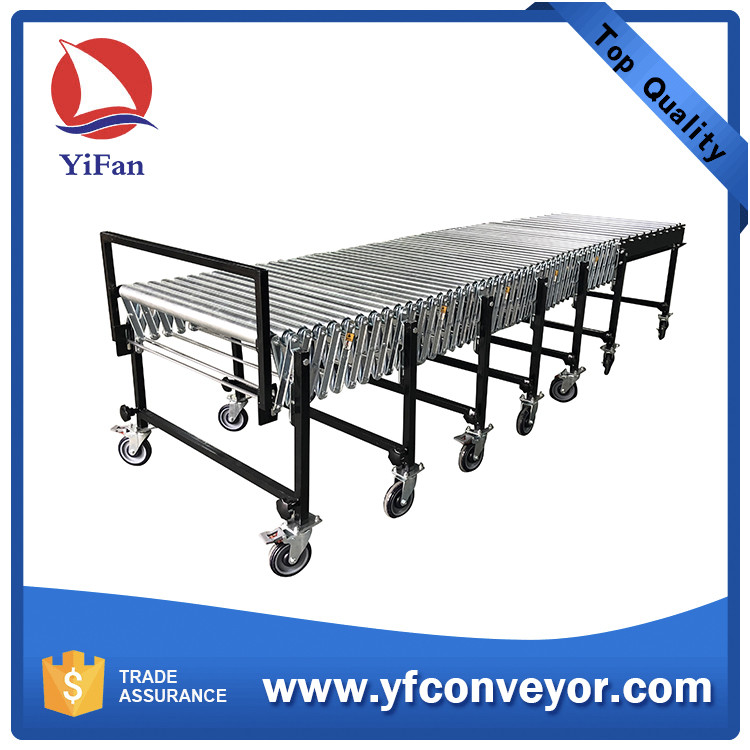

    Gravity Expandable Flexible Steel Roller Conveyor

    Description


    Gravity Expandable Flexible Steel Roller Conveyor are designed for versatility.They are exceptional for truck loading and unloading,retail stores,shipping areas,loading docks and plant floors.


    Features


    • Self Tracking-Cartons follow the twists and turns of the conveyor path without using engineered curves.
    • Detachable Square Tubing Legs-Exclusive medium-duty square tubing legs for longer service life and reduce packing size.
    • Adjustable Height-Simply turn the locking knob to raise and lower the conveyor bed height.

    Specifications


    Gravity Flexible Roller Conveyors applied in loading docks/plant floors/shipping areas

    Conveyor Height:700-1000mm or 800-1200mm

    Conveyor Length:1m-10m,optiona

    Load Capacity:50kg/m

    Roller Materials:galvanized steel

    Roller Width:600-800mm

    Roller Diameters:50mm

    Casters:lockable casters

    Structure:Roller Conveyor

    Type:Gravity Conveyor

    Condition:New

    Model Number:FGR-M

    Brand Name:YiFan


    Model List



    ModelOpen LengthClose LengthEffective WidthAdjustable HeightLoad CapacityRoller DiaRoller Material
    FGR-M4.24200mm1700mm600mm700-1000mm50kg/m50mmgalvanized steel
    FGR-M5.25200mm2100mm600mm700-1000mm50kg/m50mmgalvanized steel
    FGR-M6.26200mm2500mm600mm700-1000mm50kg/m50mmgalvanized steel
    FGR-M7.27200mm2900mm600mm700-1000mm50kg/m50mmgalvanized steel
    FGR-M8.28200mm3300mm600mm700-1000mm50kg/m50mmgalvanized steel
    FGR-M9.29200mm3700mm600mm700-1000mm50kg/m50mmgalvanized steel
    FGR-M10.210200mm4100mm600mm700-1000mm50kg/m50mmgalvanized steel


    Other Similar Types



    Contact Us


    Ningbo YiFan Conveyor Equipment Co.,Ltd.

    Email: sales@yfconveyor.com

    Web: http://www.yfconveyor.com

    Tel:+86 574 8630 1900

    Fax:+86 574 8630 1900

    Mob:+86 139 5824 8487


    FAQ


    • What is the Max.Length can you make?
    • 20m
    • Can we join two units to expand the system?
    • YES, quickly and easily join together by hooks
    • Can the width be customized?
    • YES
    • Is the height adjustable?
    • YES, 700-1000mm or 800-1200mm
    • Can the height be customized?
    • YES
    • Do you have stainless steel 304 rollers?
    • YES
    • Do you have PVC rollers?
    • YES
    • How many KGS can this conveyor carry?
    • 50KGS per square meter
    • What products can this conveyor be used to load?
    • Cartons,boxes with FLAT & HARD bottoms
    • How do you dispatch this conveyor?
    • Dispatch it completely
    • How many countries have you sell this conveyor to?
    • UK,America,France,Canada,Russia,Romania,Chile,Jordan,UAE,Spain,Qatar,Kenya,South Africa,Iran,Pakistan,Vietnam,Philippines,etc.
    • How long is the delivery time?
    • 10-15 days
    • How long is the warranty?
    • 1 year
    • Do you supply OEM & ODM service?
    • YES
    • Do you have users guide and maintenance instruction?
    • YES
    • What are the necessary spare parts we should keep?
    • wheels,screws
