NINGBO YIFAN CONVEYOR EQUIPMENT CO.,LTD. We are your reliable conveyor supplier !
10 Years
| Ask Lasest Price | |
| Brand Name : | YiFan |
| Model Number : | FPR |
| Certification : | Flexible Roller Conveyor |
| Price : | negotiable |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 100 units/month |
| Delivery Time : | 10-15 days |
Description

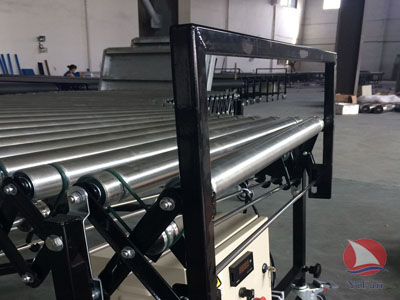

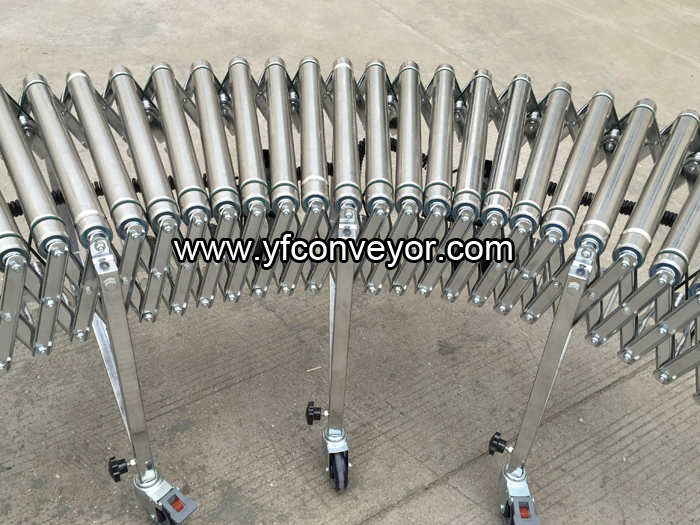

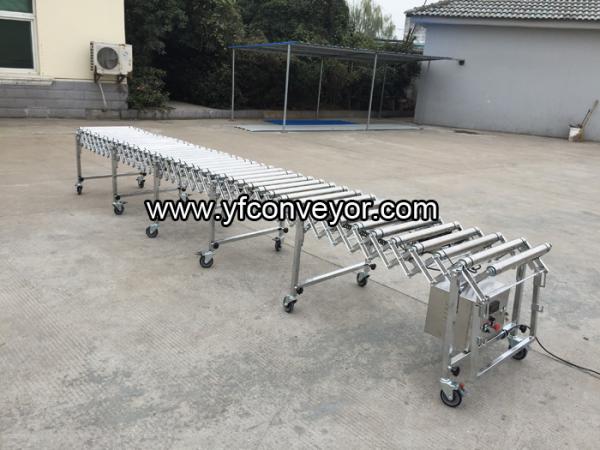

Flexible Motorized Stainless Steel Roller Conveyor,Flexible Roller Conveyor is an popular automatic roller conveyor with adjustable speed,height & direction,having enough power supply by one 60w mini motor(CHENGGANG brand) per meter.It is well qualified to intensively transport cartons,cases,boxes in the warehouse,workshop,factory,harbor,dock,etc.It can also be applied as packing line,temporary conveying line and goods distribution line.
Advantages:
EASY,SAFE,QUICK & EFFICIENT GOODS DELIVERY
Features

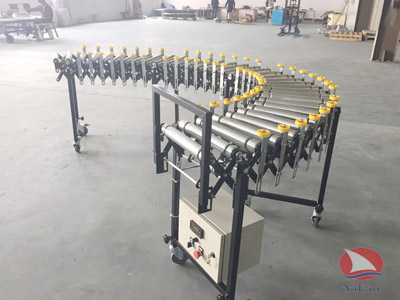

Controlled by one independent electric box,loading and unloading,two way operation.
Driving wheels with precise bearings guarantee low noise and long life span.

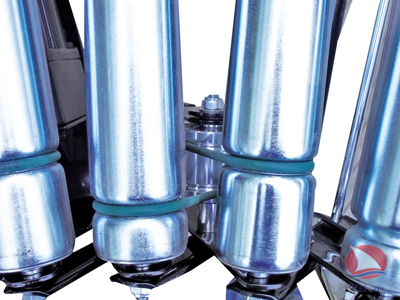

Φ50mm galvanized rollers are driven by high quality SIEGLING brand O ring PU belts.
Curved join plates with better figure and load.
End package stop guard(can be take off if not needed.)
Movable on Dia 100mm swivel polyurethane casters with locks and adjust height by black knobs.
Join two or more units by hooks quickly and easily.
Optional skate wheel side guide.
Optional stainless steel 304 rollers
Optional rubber coated rollers
Model List
| Model | Close Length (mm) | Open Length (mm) | Width (mm) | Adjustable Height (mm) | Max.Load (kg/m) | Motor Power (w) |
| FPR-4 | 1700 | 4200 | 600 | 700-1000 | 40 | 240 |
| FPR-5 | 2100 | 5200 | 600 | 700-1000 | 40 | 300 |
| FPR-6 | 2500 | 6200 | 600 | 700-1000 | 40 | 360 |
| FPR-7 | 2900 | 7200 | 600 | 700-1000 | 40 | 420 |
| FPR-8 | 3300 | 8200 | 600 | 700-1000 | 40 | 480 |
| FPR-9 | 3700 | 9200 | 600 | 700-1000 | 40 | 540 |
| FPR-10 | 4100 | 10200 | 600 | 700-1000 | 40 | 600 |
| FPR-11 | 4100 | 11200 | 600 | 700-1000 | 40 | 660 |
| FPR-12 | 4500 | 12200 | 600 | 700-1000 | 40 | 720 |
| FPR-13 | 5300 | 13200 | 600 | 700-1000 | 40 | 780 |
| FPR-14 | 5700 | 14200 | 600 | 700-1000 | 40 | 840 |
| FPR-15 | 6100 | 15200 | 600 | 700-1000 | 40 | 900 |
| FPR-16 | 6500 | 16200 | 600 | 700-1000 | 40 | 960 |
| FPR-17 | 6900 | 17200 | 600 | 700-1000 | 40 | 1020 |
| FPR-18 | 7300 | 18200 | 600 | 700-1000 | 40 | 1080 |
| FPR-19 | 7700 | 19200 | 600 | 700-1000 | 40 | 1140 |
| FPR-20 | 8100 | 20200 | 600 | 700-1000 | 40 | 1200 |
Application
Quickly loading cartons from warehouse to containers,trucks.
Transport tea bags into elevator and lift down to ground floor.
: https://youtu.be/UZs9RlU7Jq4
Conveying empty oil Jerry cans to stores
Conveying cartons in all kinds of distribution centers.
Packing and Shipping
Packing material is plywood pallet no need fumigation pallets.
