Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
| Model | Base Length | Extension | Total Length | Belt Width | Conveyor Height | Lift Angle | Drawing |
| TBC-4S-5.4/10 | 5.4m | 10m | 15.4m | 800mm | 1.2m | -5°~3° | Download |
1. Belt Specs:L=34400mm,W=800mm,T=3mm,PVC,YONGLI brand
2. Belt Motor:2.2kw,SEW,German brand
3. Extend Motor:0.55kw,SEW,German brand
4. Belt Speed:30-50m/min
5. Extend Speed:5-10m/min
6. Load Capacity:≤60kg/m
7. Frequency Converter:SCHNEIDER,French brand
8. Main Electric Elements:SCHNEIDER,French brand
9. Voltage:380V,three phase,50Hz
10. Heavy Duty Wheels:diameter 200mm,load capacity 1ton/pcs
11. Profile Material:Q345,powder painting
12. Bearings:NSK and Harbin
13. Plummer Block:TR brand
14. Free Spare Parts:Bearing:5pcs,Carrier Roller:2pcs,12A Chain:1pcs,Emergency Stop Button:1pcs,switches:2pcs,Intermediate Relay:2pcs,Fuse Protector:2pcs,Over Travel Limit Switch:2pcs
Demonstration Video
Extend,retract,rise up and down.
Video from YouTube: https://youtu.be/-dIo6BJ9XG4
Unloading cartons from trucks
Video on YouTube: https://youtu.be/v0PT41OmalM

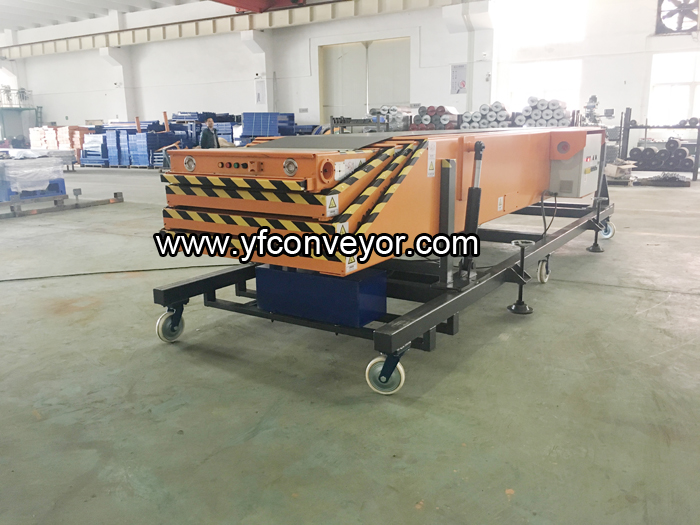

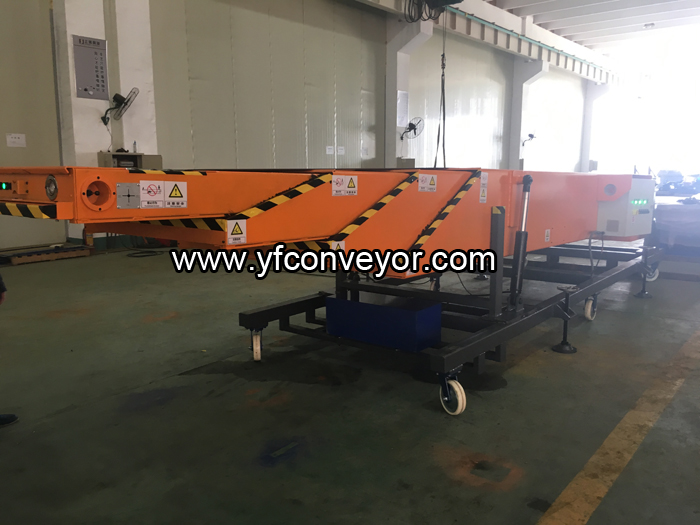

Detailed Pictures
Other Optional Models
Model | A Fixed Length (mm) | B Extension (mm) | C Total Length (mm) | H Min Height (mm) | Belt Width (mm) | Max.Load (kg/m) | Belt Speed (m/min) |
| TBC-3S-4/5.4 | 4000 | 5400 | 9400 | 750 | 600/800 | 50 | 15-30 |
| TBC-3S-4.5/6 | 4500 | 6000 | 10500 | 750 | 600/800 | 50 | 15-30 |
| TBC-3S-5/6.9 | 5000 | 6900 | 11900 | 750 | 600/800 | 50 | 15-30 |
| TBC-3S-5.4/7.3 | 5400 | 7300 | 12700 | 750 | 600/800 | 50 | 15-30 |
| TBC-3S-6/8 | 6000 | 8000 | 14000 | 750 | 600/800 | 50 | 15-30 |
| TBC-3S-6.5/8.3 | 6500 | 8300 | 15400 | 750 | 600/800 | 50 | 15-30 |
| TBC-3S-7/9.6 | 7000 | 9600 | 16600 | 750 | 600/800 | 50 | 15-30 |
4 Stages Telescopic Belt Conveyor
Model | A Fixed Length (mm) | B Extension (mm) | C Total Length (mm) | H Min Height (mm) | Belt Width (mm) | Max.Load (kg/m) | Belt Speed (m/min) |
| TBC-4S-4/7 | 4000 | 7000 | 11000 | 800 | 600/800 | 50 | 15-30 |
| TBC-4S-4.5/8.5 | 4500 | 8500 | 13000 | 800 | 600/800 | 50 | 15-30 |
| TBC-4S-5/9.5 | 5000 | 9500 | 14500 | 800 | 600/800 | 50 | 15-30 |
| TBC-4S-5.4/10.3 | 5400 | 10300 | 15700 | 800 | 600/800 | 50 | 15-30 |
| TBC-4S-6/12 | 6000 | 12000 | 18000 | 800 | 600/800 | 50 | 15-30 |
| TBC-4S-6.5/12.8 | 6500 | 12800 | 19300 | 800 | 600/800 | 50 | 15-30 |
| TBC-4S-7/14 | 7000 | 14000 | 21000 | 800 | 600/800 | 50 | 15-30 |
5 Stages Telescopic Belt Conveyor
Model | A Fixed Length (mm) | B Extension (mm) | C Total Length (mm) | H Min Height (mm) | Belt Width (mm) | Max.Load (kg/m) | Belt Speed (m/min) |
| TBC-5S-6/15 | 6000 | 15000 | 21000 | 1000 | 600/800 | 50 | 15-30 |
| TBC-5S-6/16 | 6000 | 16000 | 22000 | 1000 | 600/800 | 50 | 15-30 |
Operation Demonstration Video
|
|
