Description

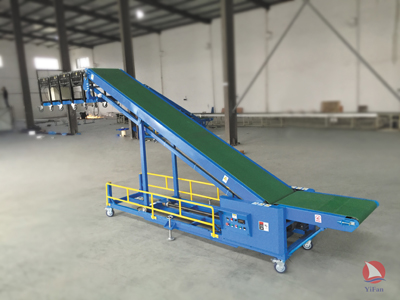

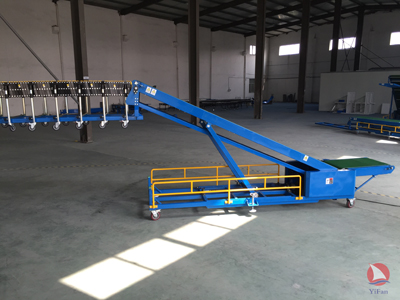

Air Port Loading Unloading Conveyor​ is one of the most popular lorry loaders which largely facilitates material handling work and increase work efficiency.It is extremely flexible and easily move into position on braked swivel castors.With high quality,competitive price,short delivery time,we have exported this machine to many countries ,such as UK,America,France,Russia,Romania,Chile,Jordan,Qatar,Kenya,South Africa,Iran,Pakistan,Vietnam,Philippines,etc.

: https://youtu.be/TxH0ZWI6_5g

Model List

Based on the difference of front tongue conveyor,we have FOUR models:

• TLC-P600 with 4m expandable powered rollers

• TLC-G600 with 6m gravity skate wheels

• TLC without front tongue

• TLC-S a small version of TLC-P600

Features

• Adopt 600mm width 5mm thickness high grip green PVC belt
• Conveyor height adjustable from 700mm to 2500mm
• Belt speed variable from 10 to 20 m/min
• Frame construction manufactured from 3mm thickness steel plate,painted surface treatment.
• Easy to movable around on 150mm heavy duty swivel lockable casters
• Can also be fixed to certain place by tighten the two threaded knobs between the two casters
• Automatically stop by limit switch when lifting up and down
• Independent electric cabinet includes OFF/ON,Emergency Stop, Forward/Reverse,Up/Down,Stop,Speed Knobs.
• CPG motors,DELTA frequency transfer,SCHNEIDER electrical elements
• Power supply options 220V single phase 50Hz or 380V three phase 50Hz,110V also available.
• The small flat belt section can be put down to be a slope.
• Easily to connect to other flexible conveyors,belt conveyors and roller conveyors.

Customer Case

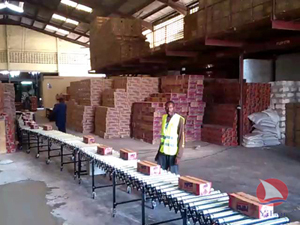

No.1------Loading 20kg soap bar cartons directly from warehouse to 40ft containers by Flexible Powered Roller Conveyor and Truck Loading Conveyor.

: https://youtu.be/Zhv8GOtUvPY

Finish loading one 40ft container with 4 workers in 30 minutes as opposed to 1hours 15 minutes.

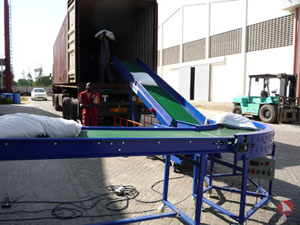

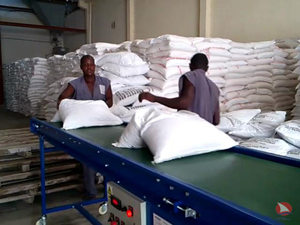

No.2------Loading 50kg soap bags directly from warehouse to 40ft containers by Mobile PVC Belt Conveyor and Truck Loading Conveyor.

: https://youtu.be/Qp2-5nCCD0I

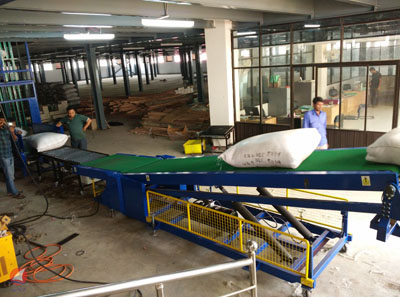

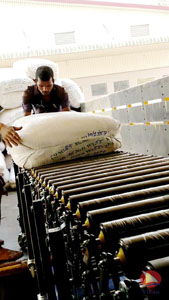

No.3------Transport 50kg tea bags from 1st floor to ground floor by Vertical Lift Conveyor and loading the bags into trailers by Flexible Powered Rubber Coated Roller Conveyor and Truck Loading Conveyor.

: https://youtu.be/UZs9RlU7Jq4

Packing and Shipping

Our standard packing is plywood pallet,cardboard,bubble film,stretch film.

Contact Us

Ms Jenny Fang

Ningbo YiFan Conveyor Equipment Co.,Ltd is a professional conveyor manufacturer who can advise you on the right products.We have an experienced R & D technical team and will work with you to provide the best solutions.Our goal is to provide cost effective solutions which add value to your business,and to leave you a satisfied customer.

OEM & ODM service are available.

Main Products

Also have other systems use PLC control with distribution software,sensors,pneumatics and electrics.
