NINGBO YIFAN CONVEYOR EQUIPMENT CO.,LTD. We are your reliable conveyor supplier !
10 Years
| Ask Lasest Price | |
| Brand Name : | YiFan |
| Model Number : | TLC |
| Price : | negotiable |
| Delivery Time : | 25-30 days |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 20 units/month |
| Certification : | Mobile belt loading conveyors(manual adjust height) |
Description

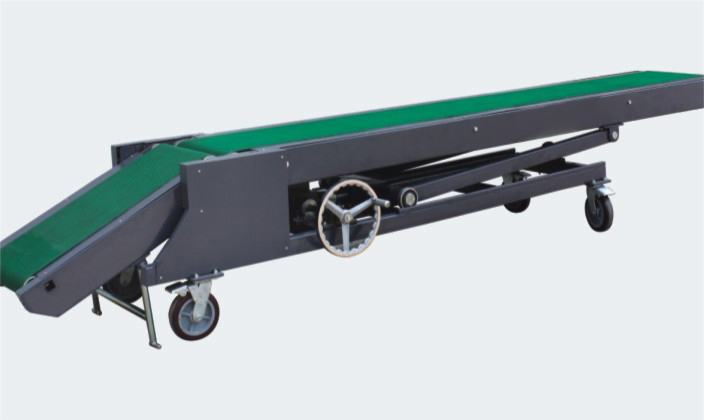

The mobile loading unloading belt conveyors (manual adjust height) are catering to the wide requirements of clients by offers precise and safe unloading of various kinds of materials from trucks/containers/vehicles/vans/trailers. It is manufactured with international standards & quality-assured components and stringently tested on quality parameters by QC to assure flawlessness.
Features
Combine with flexible conveyors,such as gravity/motorized rollers conveyors,gravity skate-wheel conveyors,mobile belt conveyors
Adjust height manually by the turning wheel.(Automatic type is available)
Three Optional Width
| Model | Belt Width | Motor Power | Load Capacity | Adjustable Height | Variable Speed | Machine Weight |
| TLC-400 | 400mm | 1.5kw | 30kg/m | 700-2500mm | 10-22m/min | 350kgs |
| TLC-600 | 600mm | 1.5kw | 50kg/m | 700-2500mm | 10-22m/min | 400kgs |
| TLC-800 | 800mm | 2.2kw | 70kg/m | 700-2500mm | 10-22m/min | 550kgs |
Customer Case
No.1------Loading 20kg soap bar cartons directly from warehouse to 40ft
containers by Flexible Powered Roller Conveyor and Truck Loading
Conveyor.
: https://youtu.be/Zhv8GOtUvPY
Finish loading one 40ft container with 4 workers in 30 minutes as
opposed to 1hours 15 minutes.
No.2------Loading 50kg soap bags directly from warehouse to 40ft containers by Mobile PVC Belt Conveyor and Truck Loading Conveyor.
: https://youtu.be/Qp2-5nCCD0I
No.3------Transport 50kg tea bags from 1st floor to ground floor by Vertical Lift Conveyor and loading the bags into trailers by Flexible Powered Rubber Coated Roller Conveyor and Truck Loading Conveyor.
: https://youtu.be/UZs9RlU7Jq4
Packing and Shipping
Our standard packing is plywood pallet,cardboard,bubble film,stretch film.
