    Flexible Expandable Gravity Zinc Plated Steel Roller Conveyor

    Ask Lasest Price
    Brand Name : YiFan
    Model Number : FGR
    Certification : Flexible Conveyors
    Price : optional
    Payment Terms : T/T,L/C
    Supply Ability : 100 units/month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

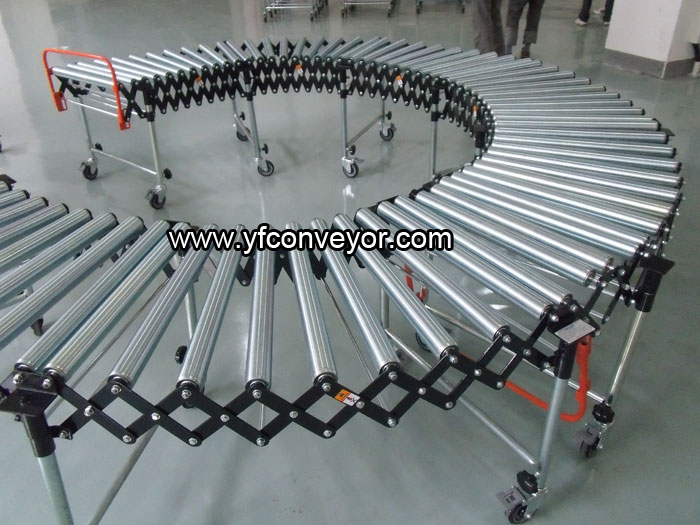

    Flexible Expandable Gravity Zinc Plated Steel Roller Conveyor

    Description


    Flexible Expandable Gravity Zinc Plated Steel Roller Conveyor is designed especially to convey flat base loads,such as different sized boxes,cases and cartons,etc.It can be expanded if you require a longer system or bent into curves or even compacted for better storage when not in use.Whats more,this conveyor is very easy to quick manoeuvre in or out of trucks for faster,safer,easier loading and unloading materials.







    Features
    ● Φ50mm galvanized steel rollers with precise bearings guarantee fairly low noise and long life span.
    ● Twin PVC rollers,stainless steel rollers also available for certain sensitive cargo.
    ● Effective roller width are 600mm as standard(300mm~1000mm as options).
    ● 50kg per linear meter load capacity
    ● Heavy duty powder coated steel side plates ensure maximum strength and durability,bright Zinc plated side plates also available.
    ● Supporting legs are fully adjustable from 700mm to 1000mm as standard(800mm to 1200mm as option).
    ● Easy to move around on Dia 100mm heavy duty lockable swivel polyurethane casters.
    ● With package stop end bar to prevent cartons from falling off the conveyors.
    ● Can be made in custom lengths to suit your individual conveying application.
    ● Quickly and easily join two or more units together to expand your system
    Model List
    ModelExtendable LengthEffective WidthAdjustable HeightMax.LoadRoller DiaRoller Material
    FGR-2

    1120-2500mm

    (3.6'-8.2')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
    FGR-3

    1580-3600mm

    (5.1'-11.8')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
    FGR-4

    2040-4700mm

    (6.6'-15.4')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
    FGR-5

    2500-5800mm

    (8.2'-19')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
    FGR-6

    2960-6900mm

    (9.7'-22.6')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
    FGR-7

    3420-8000mm

    (11.2'-26.2')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
    FGR-8

    3880-9100mm

    (12.7'-29.8')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
    FGR-9

    4340-10200mm

    (14.2'-33.4')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
    FGR-10

    4800-11300mm

    (15.7'-37')

    		600 mm

    700-1000mm

    (27-1/2" to 39-1/2")

    		50kg/m50mmPlastic,Steel
