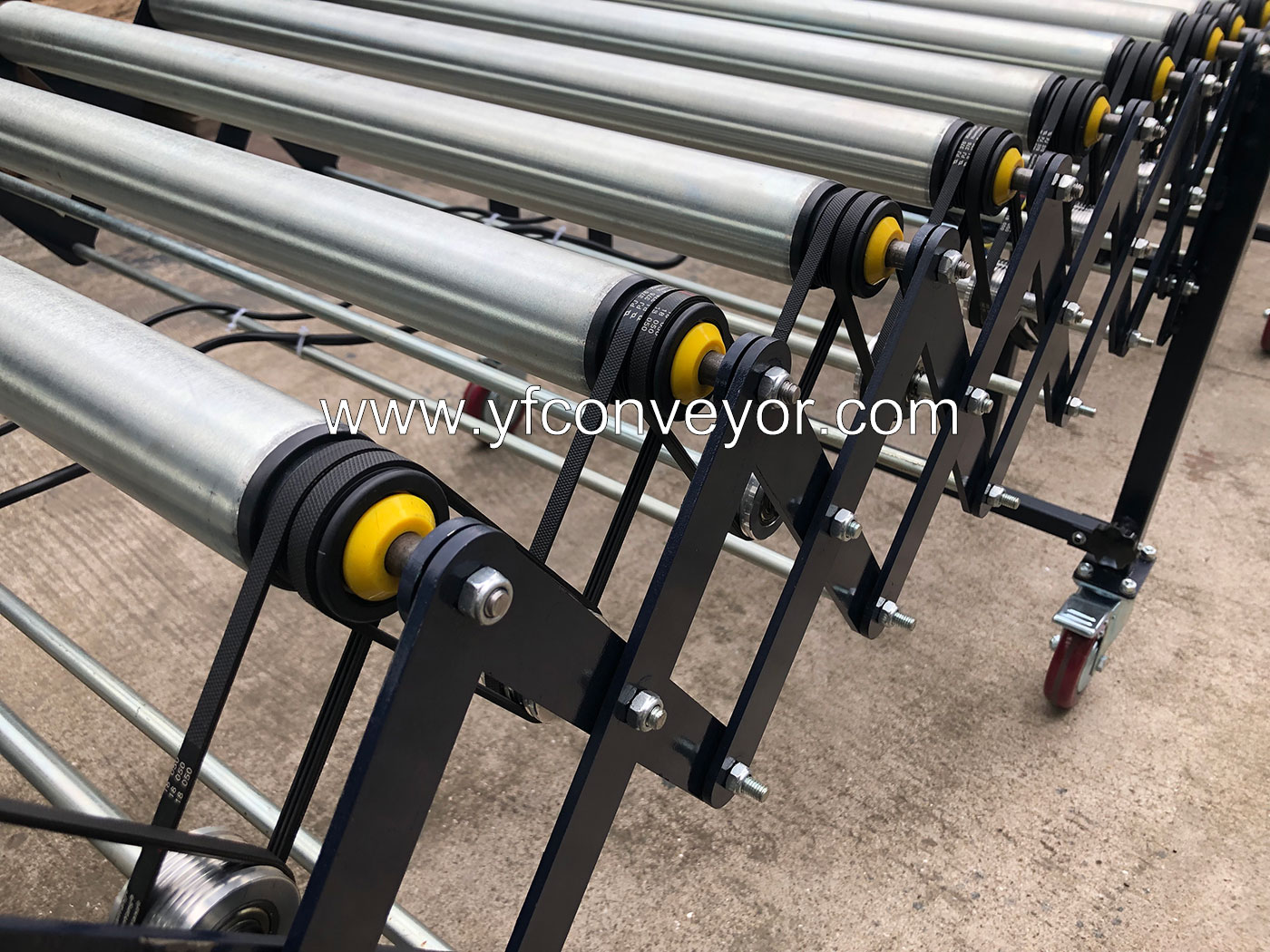

Flexible Powered Roller Conveyor-V belt
V Belt Flexible Motorized Roller Conveyor is more strong than O Belt type. The side links and legs joint structure is reinforced. Thickness of X shape side links increased to 5mm. Motors power changed from 90W to 120W.Motor numbers also increased.
TECHNICAL PARAMETERS
| Belt | High quality Yuanyang V belt |
| Roller | Dia 50*1.5mm galvanized steel roller, Max. gap 130mm center to center |
| Motor | 120W electronic governor motor |
| Frame | 5mm thickness reinforced X shape side links |
| Leg | 32×32 powder coated tube with 25×25 galvanized tube inside |
| Caster | 5"high quality swivel lockable polyurethane casters |
| Control Box | Forward/Stop/Reverse |
| Frequency Inverter | Delta |
MODEL LIST
| Model | Open Length (mm) | Close Length (mm) | Width (mm) | AdjustableHeight (mm) | VariableSpeed (m/min) | Max.Load (kg/㎡) | Motor Power (w) |
| FPR-V4 | 4800 | 2040 | 600,700,800 | 700-1000 | 10-20 | 95 | 450 |
| FPR-V6 | 6000 | 2550 | 600,700,800 | 700-1000 | 10-20 | 95 | 540 |
| FPR-V7 | 7200 | 3060 | 600,700,800 | 700-1000 | 10-20 | 95 | 630 |
| FPR-V8 | 8400 | 3570 | 600,700,800 | 700-1000 | 10-20 | 95 | 720 |
| FPR-V9 | 9600 | 4080 | 600,700,800 | 700-1000 | 10-20 | 95 | 810 |
| FPR-V10 | 10800 | 4590 | 600,700,800 | 700-1000 | 10-20 | 95 | 900 |
| FPR-V12 | 12000 | 5100 | 600,700,800 | 700-1000 | 10-20 | 95 | 990 |
| FPR-V13 | 13200 | 5610 | 600,700,800 | 700-1000 | 10-20 | 95 | 1080 |
| FPR-V14 | 14400 | 6120 | 600,700,800 | 700-1000 | 10-20 | 95 | 1170 |
| FPR-V15 | 15600 | 6630 | 600,700,800 | 700-1000 | 10-20 | 95 | 1260 |
| FPR-V16 | 16800 | 7140 | 600,700,800 | 700-1000 | 10-20 | 95 | 1350 |
| FPR-V18 | 18000 | 7650 | 600,700,800 | 700-1000 | 10-20 | 95 | 1440 |
| FPR-V19 | 19200 | 8160 | 600,700,800 | 700-1000 | 10-20 | 95 | 1530 |
| FPR-V20 | 20400 | 8670 | 600,700,800 | 700-1000 | 10-20 | 95 | 1620 |
