NINGBO YIFAN CONVEYOR EQUIPMENT CO.,LTD. We are your reliable conveyor supplier !
10 Years
| Ask Lasest Price | |
| Brand Name : | YiFan |
| Model Number : | FGW-S |
| Certification : | Flexible Expandable Gravity Plastic Skate Wheel Conveyor |
| Price : | negotiable |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 100 units/month |
| Delivery Time : | 10-15 days |

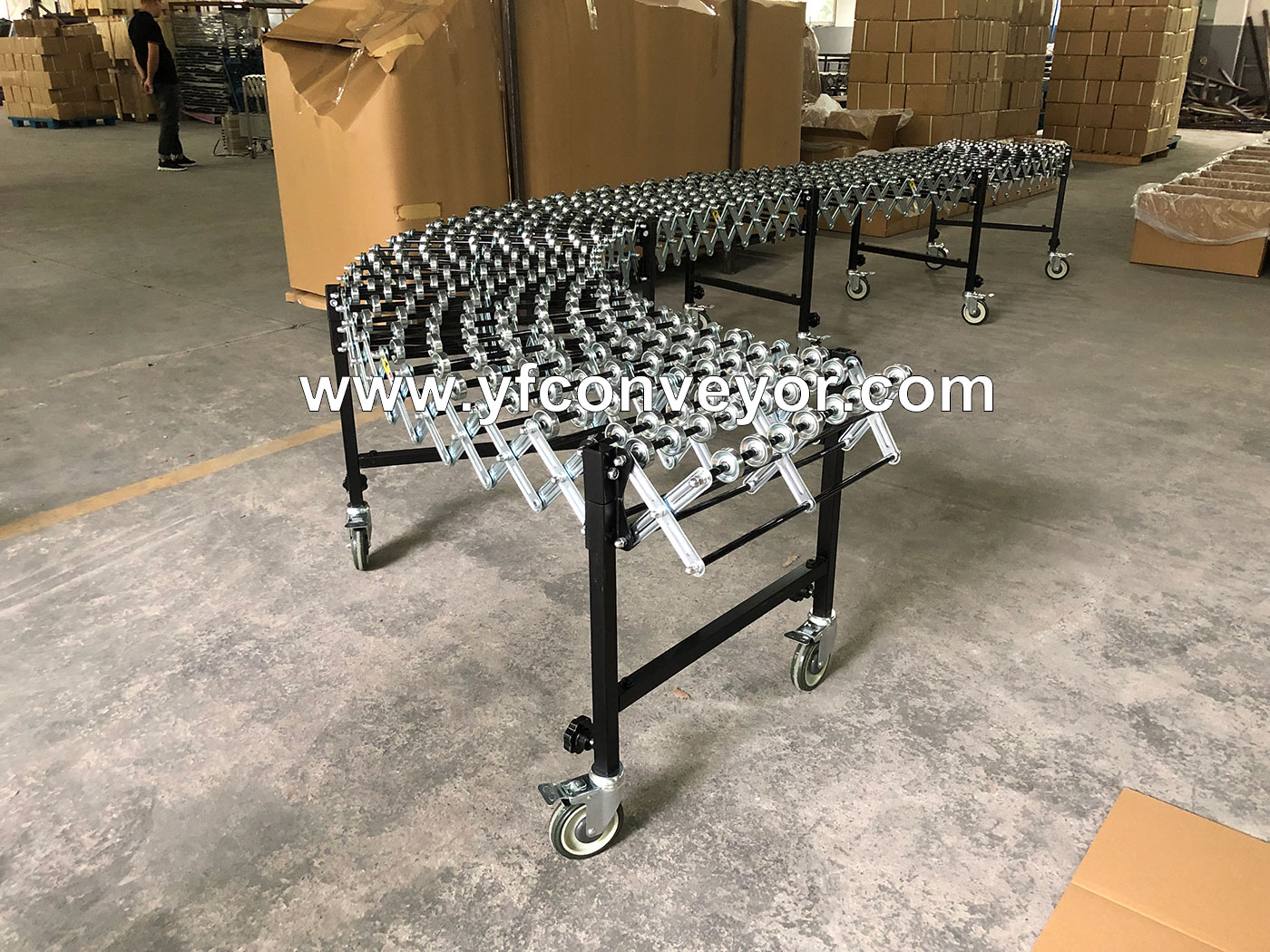

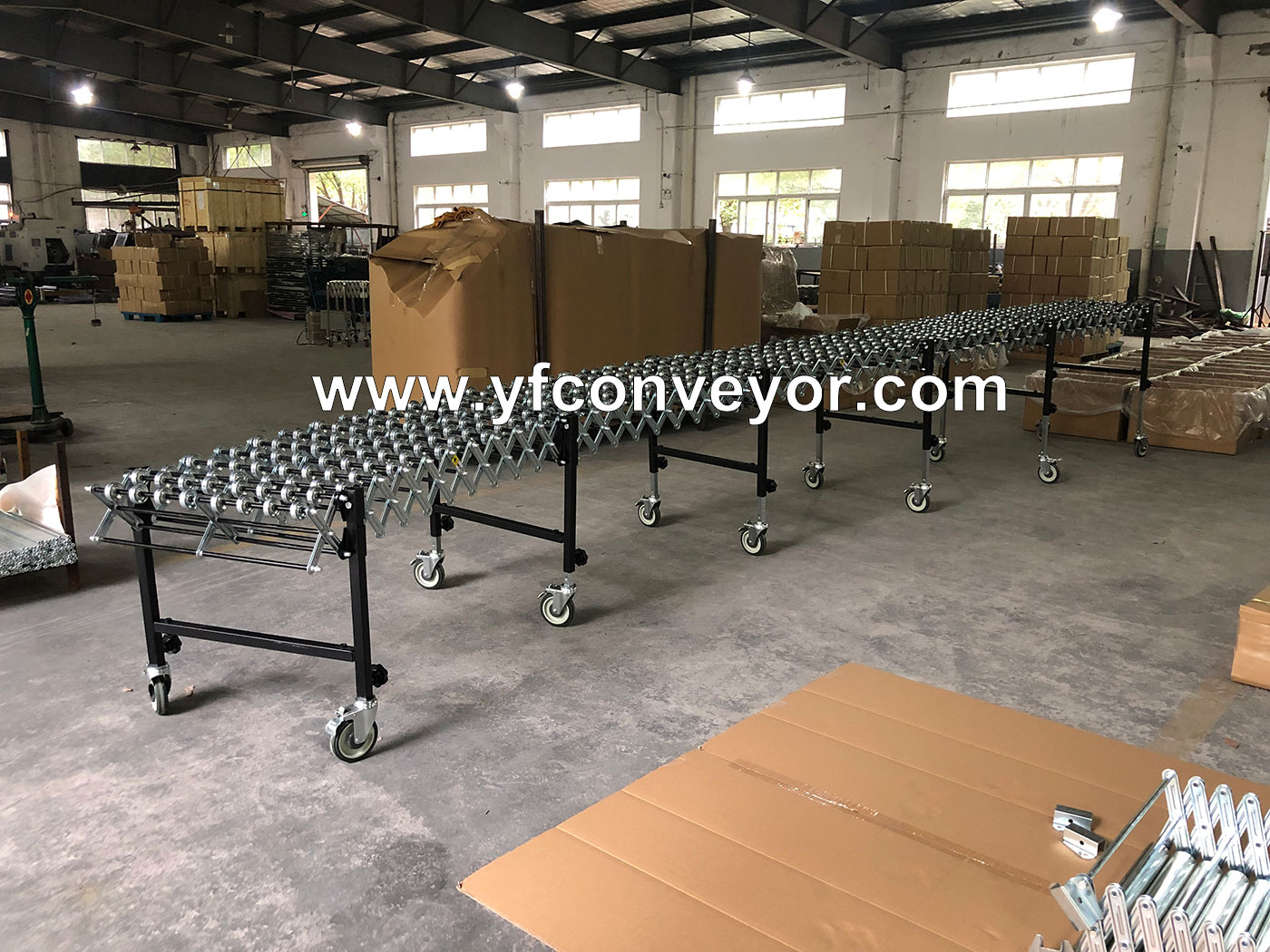

Heavy Duty Gravity Flexible Steel Skate Wheel Conveyor,Warehouse Loading Unloading Conveyor
can be used to loading unloading cartons,boxes in the containers,trucks.It can also be used for products assembly line and storing line.The conveyor is very convenient to move around and can be closed when not use.
Model List
| Model | Extendable Length | Effective Width | Adjustable Height | Max.Load | Wheels | Frame Material |
| FGW-S4.8 | 1400-4800mm (4.6'-15.7') | 450mm,600mm (18",24") | 620-990mm or 710-1120mm (24.4"-39" or 28"-44") | 50kg/m | 49mm galvanized steel | carbon steel powder coated |
FGW-S5 | 1460-5000MM | 450mm,600mm (18",24") | 620-990mm or 710-1120mm (24.4"-39" or 28"-44") | 50kg/m | 49mm galvanized steel | carbon steel powder coated |
| FGW-S6 | 1800-6000mm (5.9'-19.7') | 450mm,600mm (18",24") | 620-990mm or 710-1120mm (24.4"-39" or 28"-44") | 50kg/m | 49mm galvanized steel | carbon steel powder coated |
Features
The conveyor is easy to open and close.
It is freely to take a 90 degree curve.
Can be applied as a straight operation line in warehouse
Can be closed when not use to save space.
With 8 wheels per raw and with X side frame in the middle.
The conveyor height is adjustable.
The conveyor can be applied as a inclined conveyor line.
Curved side frame with nice load.
Take off legs when packing to save space.
Take off the legs to be loaded into cartons.
How to choose the flexible conveyor model?
● The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.
|
|
