| Brand Name : | YiFan |
| Model Number : | FGW-P |
| Price : | negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100 units/month |
| Delivery Time : | 10-15 days |
| MOQ : | 10m |
Product Description

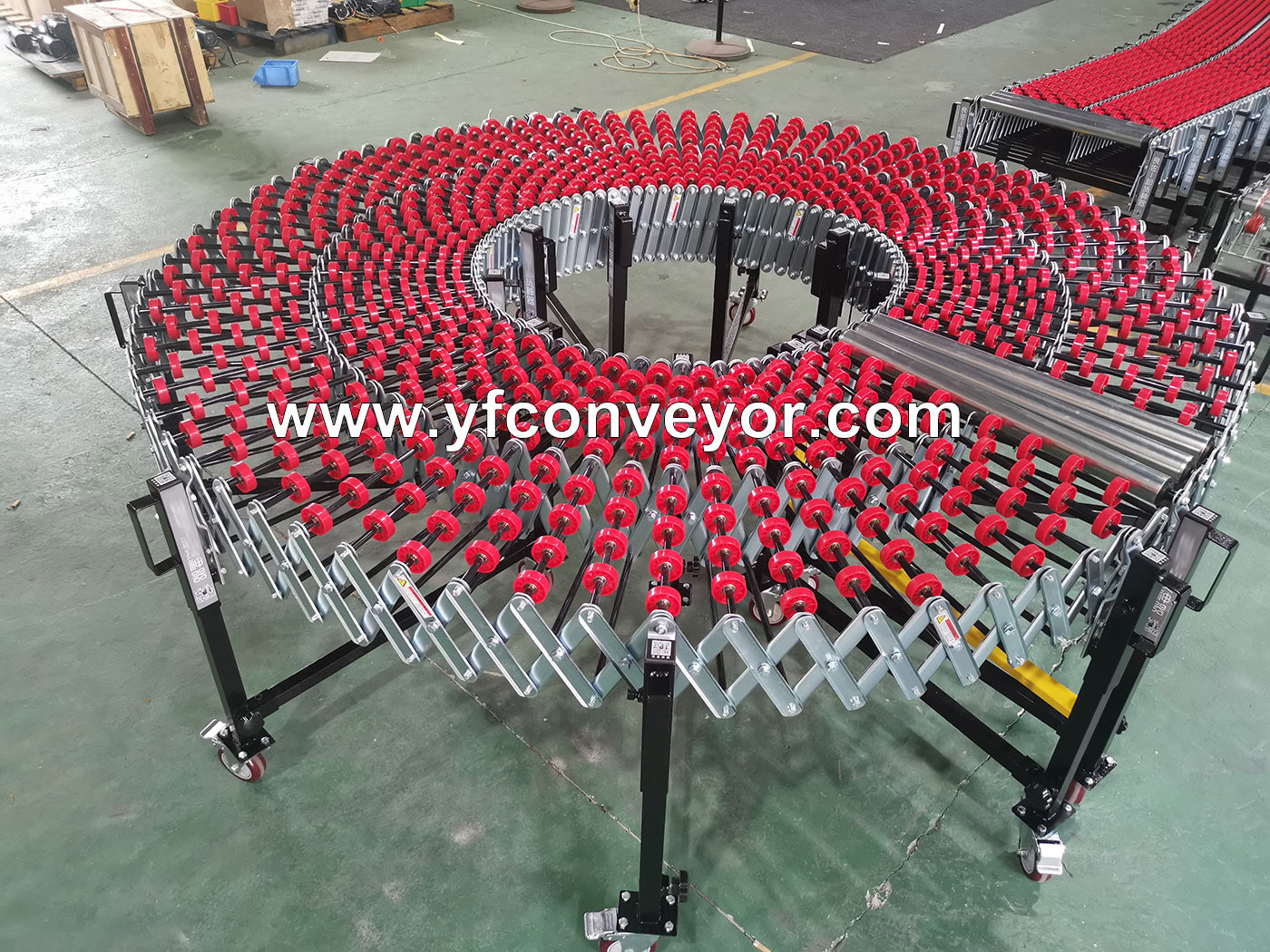

Skate Wheel Expandable Flexible Gravity Conveyor is often chosen to convey small and medium sized flat-bottom items in harbor,dock,warehouse and storehouse,factory,etc.
With universal wheel caster and foot brake, push hand to ensure safe operation, stable cargo and easy to change the direction of transport to the end.The skate wheel conveyor is light and easy to move.Conveyors greatly facilitate the transport of goods.The crossed skateboard wheels ensure that the goods transported will be automatically oriented and will not fall from the side.
Model List
| Model | Close Length(mm) | Open Length(mm) | Effective Width(mm) | Adjustable Height(mm) | Max.Load | Wheel Material |
| FGW-HP2 | 860 | 2400 | 600 | 600-800 | 80kg/m | plastic |
| FGW-HP3 | 1200 | 3600 | 600 | 600-800 | 80kg/m | plastic |
| FGW-HP4 | 1540 | 4700 | 600 | 600-800 | 80kg/m | plastic |
| FGW-HP5 | 1880 | 5800 | 600 | 600-800 | 80kg/m | plastic |
| FGW-HP6 | 2220 | 6900 | 600 | 600-800 | 80kg/m | plastic |
Product Features
1.It is extendable,retractable and bendable.
2.Convenient movement with brake universal casters firm, easy to use, can be moved anywhere at any time.
3.The conveyor supports legs and drums.The height of the supporting leg of the conveyor can be adjusted, and the caster can roll in any direction.
4. ABS engineering plastic roller has the characteristics of lightweight structure, widely used in the need of frequent movement and handling occasions, and low cost, beautiful appearance.
5.High quality alloy expansion plate has strong corrosion resistance and is not easy to be deformed and broken.
|
|
